Shopping two-post lifts and hit the clearfloor vs baseplate 2 post lift question? nationwide It comes down to your ceiling height and how clean you want the bay. Here is the plain difference and how to choose.
The core difference
Clearfloor vs baseplate 2 post lift is really about where the equalizer cables and hoses run. A clearfloor (overhead) lift routes them through a beam across the top of the columns, leaving the floor between the posts completely open. A baseplate (floor-plate) lift routes them through a plate in the floor, which means a low bar to step over but no overhead beam. That single routing choice drives everything else.
Clearfloor: open floor, needs height

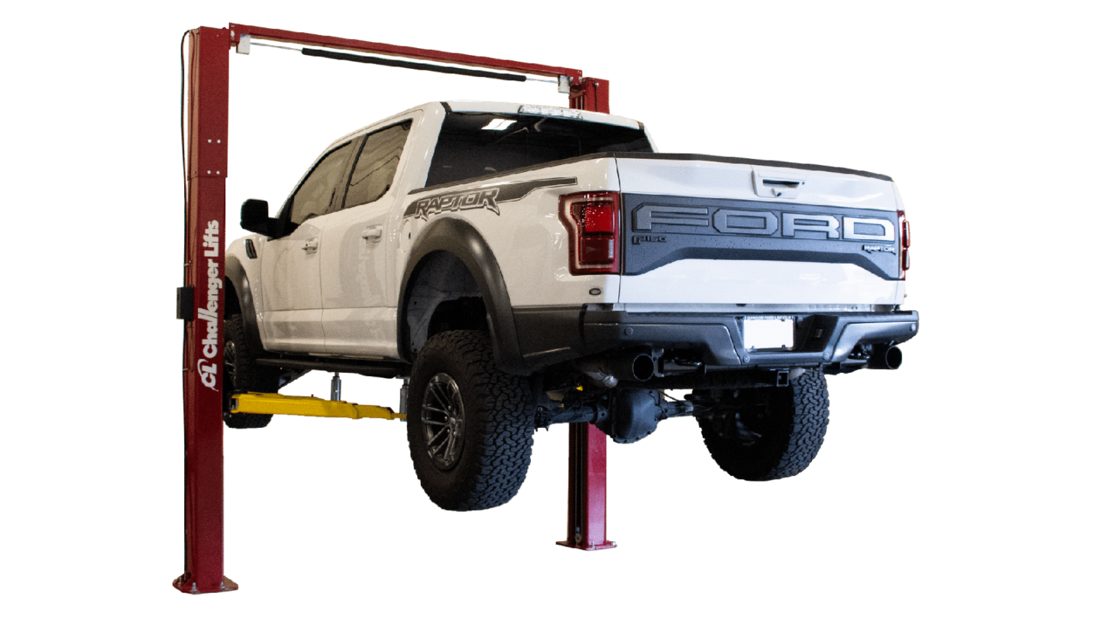

The clearfloor side of clearfloor vs baseplate 2 post lift gives you a totally unobstructed floor – nothing to trip over, easy to roll a jack or creeper through. The trade-off is you need the ceiling height to clear the overhead beam plus a raised vehicle. For a shop with a normal or tall ceiling, clearfloor is the clean, popular choice. The Challenger CL10AV3 2-post lift is a common clearfloor lift.
Baseplate: fits low ceilings
The baseplate side of clearfloor vs baseplate 2 post lift is the answer for low ceilings. With no overhead beam, a baseplate lift fits under an 8-9 foot ceiling where a clearfloor lift will not. The trade-off is the floor plate you step over between the posts. For a home garage or low-ceiling shop, baseplate makes a two-post possible – see low-profile options like the Challenger CLFP9 low-ceiling 2-post lift in our 2-post lifts.
How to decide
Deciding clearfloor vs baseplate 2 post lift is mostly arithmetic: measure your ceiling. If you have the height, clearfloor gives the nicer bay. If you are tight, baseplate gets you a working two-post where a clearfloor simply will not fit. We measure your ceiling against the specific lift so you do not order the one that does not fit.
Both are equally safe
Neither side of clearfloor vs baseplate 2 post lift is safer than the other – both anchor to the slab and hold the vehicle the same way. The routing of the cables does not change the lift’s capacity or safety. Choose on ceiling height and bay preference, not on any belief that one design is stronger.
Let us confirm the fit
The clean way to settle clearfloor vs baseplate 2 post lift is to tell us your ceiling height. We will tell you honestly whether you can run a clearfloor lift or need a baseplate, spec the right model, and quote it installed. Browse our 2-post lifts to compare both.
Measure to the lowest obstruction
One practical tip on clearfloor vs baseplate 2 post lift: when you measure your ceiling, measure to the lowest thing in the bay – a garage door track, a light, a beam – not just the flat ceiling. A clearfloor lift’s overhead beam plus a raised vehicle has to clear all of it. We would rather catch a low door opener now than have you discover it on install day. Send us your real numbers and we will confirm the fit before you order.
Where we work
We are based in Iowa and support shops across the country. Some work we do on site regionally; for the rest of the U.S. we handle equipment, parts, and phone diagnosis, and we coordinate service calls where it makes sense. Call and we will tell you honestly what we can do for your location.
We would rather give you a straight answer than overpromise a truck roll that does not make sense. Tell us where you are and what you need.
Clearfloor Vs Baseplate 2 Post Lift – FAQ
Is one design safer than the other?
No. Both anchor to the slab and hold the vehicle the same way. The cable routing doesn't change capacity or safety – choose on ceiling height and bay preference.
How do I know which fits my shop?
Measure your ceiling height. We check it against the specific lift's overhead clearance before you buy so you don't order one that won't fit.
What's the difference between clearfloor and baseplate 2-post lifts?
Clearfloor (overhead) lifts route the cables through a top beam, leaving the floor open but needing ceiling height. Baseplate lifts route them through a floor plate, fitting low ceilings but leaving a low bar to step over.
Which is better for a low ceiling?
Baseplate – with no overhead beam it fits under an 8-9 foot ceiling where a clearfloor lift won't. If you have the height, clearfloor gives a cleaner, open floor.
Weighing clearfloor vs baseplate 2 post lift? Call 800-674-9302 with your ceiling height and we will confirm which design fits and quote it installed.
